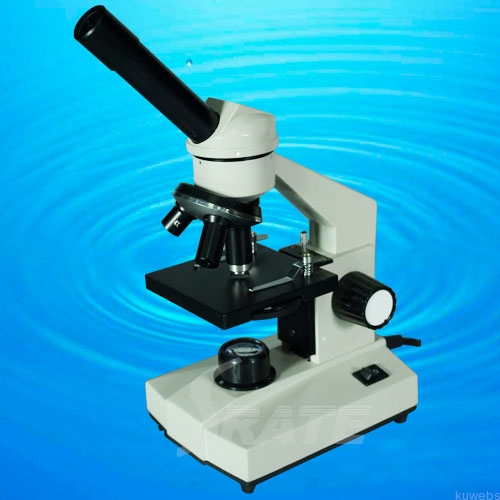

Model : TXS03-02E

---

Specifications

eyepiece Wide Field Plane-Scope Eyepiece: WF10X

objectives 45mm DIN Achromatic Objective: 4X, 10X, 40X(S)

Magnification 40X-400X

viewing head Monocular Head, 45° Inclined, 360° Rotatable

nosepiece quardruple nosepiece

stage  Plain Stage With Paired Clips: 90X90mm;

condensor Single Lens Condenser: N.A. 0.65

Six-stop Dial Diaphragm

illumination Built-in Incandescent Lamp 15W(or LED)

focusing Coarse Focusing Adjustable Mechanism: 8mm;



Packings

inner packing  Foamed Plastic + Inner Carton

outer packing Net Weight/Set: 1.5kg

Package: 10Sets/Carton 81X45X36cm

Gross Weight/Carton: 20kg
