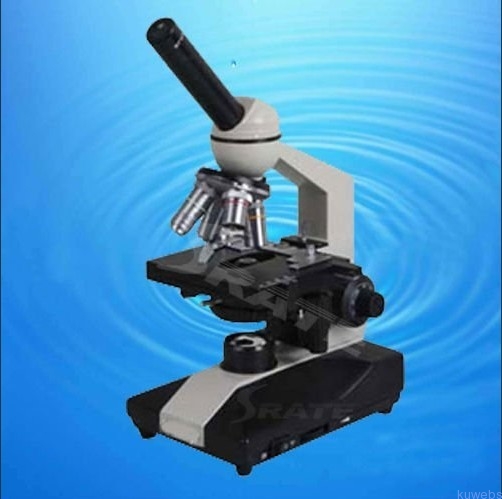

Model : TXS03-01E-1

---

Specifications

eyepiece Wide Field Plane-Scope Eyepiece: WF10X

objectives 45mm DIN Achromatic Objective: 4X, 10X, 40X(S)

Magnification 40X-400X

viewing head Monocular Head, 45° Inclined, 360° Rotatable

nosepiece quardruple nosepiece

stage  Plain Stage With Paired Clips: 110X125mm;  Moving Stage X-Y:60X20mm

condensor Single Lens Condenser: N.A. 0.65

Six-stop Dial Diaphragm

illumination Built-in Incandescent Lamp 20 W(or LED)

focusing Coarse Focusing Adjustable Mechanism: 14mm



Packings

inner packing  Foamed Plastic + Inner Carton

outer packing Net Weight/Set: 1.5kg

Package: 4Sets/Carton 54X39X40cm

Gross Weight/Carton: 13kgs
