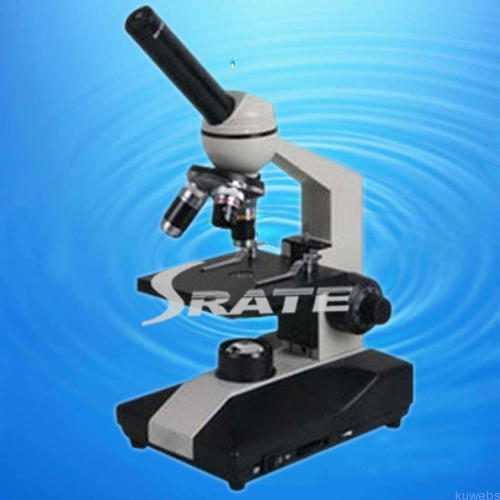

Model : TXS03-01C -1

---

Specifications

eyepiece Wide Field Plane-Scope Eyepiece: WF10X

objectives 45mm DIN Achromatic Objective: 4X, 10X, 40X(S)

Magnification 40X-400X

viewing head Monocular Head, 45° Inclined, 360° Rotatable

nosepiece quardruple nosepiece

stage  Plain Stage With Paired Clips: 110X120mm

Five-Stop Dial Diaphragm

condensor Single Lens Condenser: N.A. 0.65

illumination Built-in  Incandescent Lamp 6V/20W(or Halogen Lamp, or Fluorescent, or LED)

focusing Coaxial Coarse And Fine Focusing Adjustable Mechanism: 14mm



Packings

inner packing  Foamed Plastic + Inner Carton

outer packing Net Weight/Set: 2.2kg

Package: 4Sets/Carton 54X39X40cm

Gross Weight/Carton: 11kg
