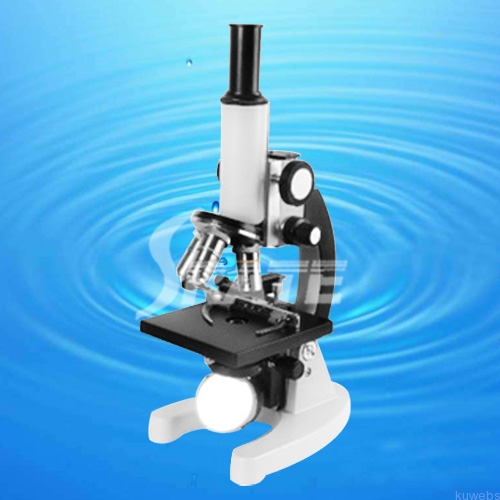

Model : TXS01-04

---

Specifications:

1) 45mm DIN Achromatic Objective: 10X,40X(S),100X(S, oil);

2) Huygenian Eyepiece: 5X, 10X , 16X;

3) Vertical Monocular Head;

4) Total magnification: 50X-1600X

5) Plain Stage With Sliding Ruler Mechanism: 110x120mm, Moving Range: 60x30mm;

6) 2-30mm Iris Diaphragm and 30mm Filter;

7) ABBE Condenser: N.A.1.25

8) Separated Coarse and Fine Focusing Adjustable Mechanism: 35mm/2mm

9) 50mm Plane-Concave Reflector;



Packings:

1) Net Weight/Set: 2.8kg

2) Package: 4 sets/carton 54x39x40cm;

3) GrossWeight/Carton: 14kg
